Helical Gearbox: Complete Guide to Efficiency, Working & Industrial Applications
In modern industrial machinery, efficiency, durability, and smooth power transmission are critical. One of the most reliable solutions for achieving these goals is a helical gearbox. Known for its high efficiency, low noise, and long service life, gearboxes are widely used across industries such as manufacturing, automotive, material handling, and heavy engineering.
If you’re planning to invest in a high-performance solution, explore our complete range of Helical Gearbox designed for industrial excellence.
If you’re looking to improve machine performance and reduce operational losses, understanding how a helical gearbox works—and why it’s superior to other gear systems—is essential.

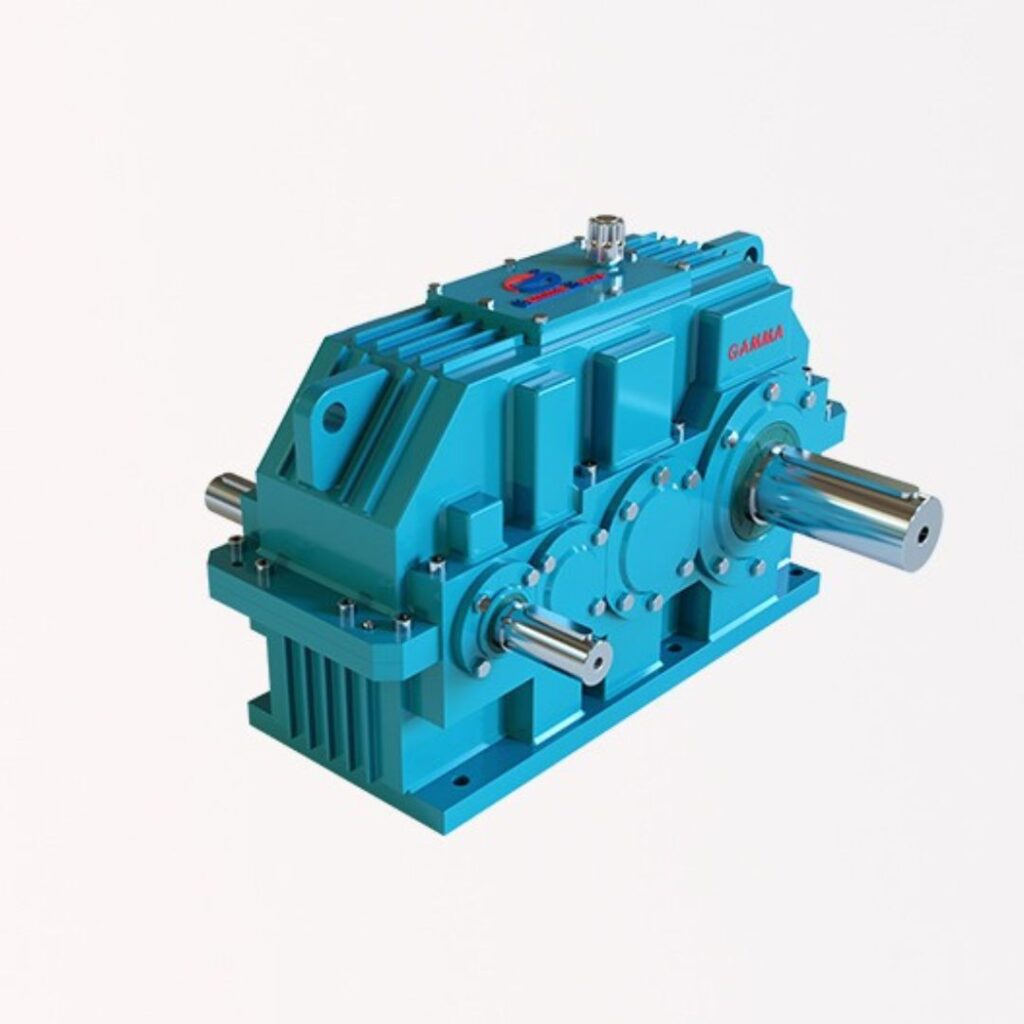

What Is a Helical Gearbox?
A helical gearbox is a type of gear system that uses helical gears, which have teeth cut at an angle to the axis of rotation. Unlike spur gears, where teeth are straight, helical gears engage gradually, resulting in smoother and quieter operation.
These gearboxes are specifically designed to transmit power between shafts efficiently while handling heavy loads with minimal vibration.
How Does a Helical Gearbox Work?
The working principle of a helical gearbox is based on angled gear teeth interaction.
When the input shaft rotates, the helical gears mesh gradually due to their angled teeth. This gradual engagement reduces shock load and ensures smooth transmission of motion and torque.
Key Working Features:
Continuous contact between teeth
Reduced vibration and noise
Higher load carrying capacity
Efficient torque transmission
Types of Helical Gearboxes :
Helical gearboxes are available in different configurations depending on industrial needs:
1. Single Helical Gearbox :
Basic design
Used in light to medium-duty applications
2. Double Helical Gearbox (Herringbone) :
Two opposite angled teeth
Eliminates axial thrust
Ideal for heavy-duty operations
3. Inline Helical Gearbox :
Shafts are parallel
Compact and efficient design
4. Helical Bevel Gearbox :
Combines helical and bevel gears
Used for angular power transmission
For applications requiring different torque characteristics, you can also consider our advanced Worm Reduction Gearbox solutions.
Advantages of Helical Gearboxes :
Helical gearboxes offer several benefits that make them a preferred choice in industries:
1. High Efficiency :
Helical gearboxes provide 98–99% efficiency, making them ideal for continuous operations.
2. Smooth & Quiet Operation :
Due to gradual tooth engagement, noise and vibration are significantly reduced.
3. High Load Capacity :
They can handle heavy loads without compromising performance.
4. Durability :
Longer lifespan due to uniform load distribution.
5. Versatility :
Suitable for various applications across industries.
Applications of Helical Gearboxes :
Helical gearboxes are widely used in multiple sectors:
Conveyor systems
Cement plants
Steel industries
Power plants
Packaging machinery
Automotive sector
Textile machinery
Their ability to operate under high load conditions makes them indispensable in industrial setups.
In specialized industries like food processing, extruder duty gearboxes play a crucial role in ensuring continuous and hygienic operations—learn more in our detailed guide on Extruder Duty Helical Gearboxes in modern food machinery.
Why Choose Gamma Gears for Helical Gearboxes?
When it comes to reliability and performance, Gamma Gears stands out as a trusted manufacturer of high-quality helical gearboxes.
Key Reasons:
Precision engineering
High-quality materials
Custom design solutions
Strict quality control
Competitive pricing
Gamma Gears ensures that every gearbox delivers maximum efficiency, durability, and performance, meeting the demands of modern industries.
Maintenance Tips for Helical Gearboxes :
Proper maintenance can significantly extend the life of your gearbox.
Essential Tips:
Regular lubrication
Check for unusual noise or vibration
Inspect seals and bearings
Monitor temperature levels
Perform periodic servicing
Future Trends in Helical Gearboxes :
With advancements in technology, helical gearboxes are evolving:
Integration with IoT for predictive maintenance
Use of advanced materials for durability
Energy-efficient designs
Compact and lightweight structures
A gearbox is an essential component in modern industrial machinery, offering unmatched efficiency, durability, and smooth performance. Whether you’re upgrading your existing system or installing a new one, choosing the right gearbox can significantly impact productivity and operational costs.
For high-quality, reliable solutions, Gamma Gears provides industry-leading helical gearboxes designed to meet diverse industrial requirements.
Need expert guidance? Feel free to Contact our team for the best gearbox solution tailored to your needs.
FAQs :
What is a helical gearbox and how does it work?
A helical gearbox is a power transmission system that uses angled (helical) gears to transfer motion between shafts. The angled teeth engage gradually, ensuring smooth, quiet, and efficient torque transmission compared to traditional gear systems.
Why is a helical gearbox more efficient than a spur gearbox?
A helical gearbox offers higher efficiency because multiple teeth are in contact at the same time, reducing energy loss and vibration. This results in smoother operation and better load distribution than spur gearboxes.
Where are helical gearboxes commonly used?
Helical gearboxes are widely used in industries such as manufacturing, food processing, cement plants, conveyors, packaging machines, and automotive systems due to their ability to handle high loads and continuous operation.
What are the advantages of using a helical gearbox?
The main advantages include:
High efficiency (up to 98–99%)
Smooth and quiet operation
High load-carrying capacity
Long service life
Low maintenance requirements
What is the difference between a helical gearbox and a worm gearbox?
A helical gearbox provides higher efficiency and is suitable for heavy-duty applications, while a worm gearbox offers higher reduction ratios and self-locking capability but with lower efficiency.
What is an extruder duty helical gearbox?
An extruder duty helical gearbox is a specialized gearbox designed for extrusion processes in industries like food and plastic. It handles high torque, continuous loads, and ensures reliable performance in demanding environments.
How do I choose the right helical gearbox for my application?
To select the right gearbox, consider:
Required torque and load
Speed ratio
Mounting type
Operating conditions
Efficiency and maintenance needs
Choosing the correct specifications ensures optimal performance and durability.
What maintenance is required for a helical gearbox?
Regular maintenance includes lubrication checks, inspection of gears and bearings, monitoring temperature, and ensuring proper alignment. Proper maintenance helps extend the lifespan and efficiency of the gearbox.
Are helical gearboxes suitable for continuous operation?
Yes, helical gearboxes are ideal for continuous operations due to their smooth engagement, reduced wear, and high efficiency, making them perfect for industrial environments.
Why choose Gamma Gears for helical gearboxes?
Gamma Gears offers precision-engineered helical gearboxes with high durability, efficient performance, and customizable solutions tailored to industrial requirements, ensuring long-term reliability.
